Description:

200KV DC Hipot tester, model DP200 is a high-performance, portable test system which is used to evaluate the insulation situation of different electrical equipment, such as power cables, surge arresters , motor and generators, both DC Hipot and leakage current.

Standard conformed to：

DL/T848.1-2004,General technical specification of high voltage test devices Part 1:High voltage DC generator.

Applications：

200KV DC Hipot tester, model DP200 main applications as below

Together its current-limiting resistor, DP200KV/5mA could be used to perform 110KV and below power cables test. Both acceptance test and preventive test. DC proof and DC leakage;

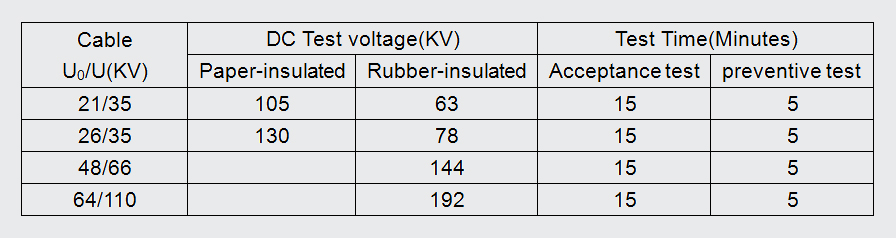

Table 1. DC Hipot test voltage and time for different power cables

To test 110KV system voltage gapless MO surge arresters, its 1mA reference voltage is 145KV; Both 1mA reference voltage and the leakage current at 0.75UDC1mA; The acceptance criterion＜50μA;

All kinds of motor and generators. Once it is used to test water-cooled generators, the cooled water should be discharged and dried thoroughly. Both DC Hipot and Leakage current;

                              Fig.1 DC Cable testing                                           Fig.2 MOA DC testing

Main Features:

• DC ripple < 1.0 % RMS with full-wave rectification;

• Step/ramp outputs smoothly with ±1% voltage stability based on the closed-loop circuit;

• ±1% stability with ±10% line change;

• ±1% digital meters for voltage and current measurements;

• Negative polarity output , positive ground;

• 30 minutes continuous duty cycle;

• Built-in "zero-start" and Over-voltage protection;

• One button for 0.75UDC1mA MOA test;

• Lightweight and rugged, suitable for on-site testing;

Fig.3 DP200 Connections with current-limiting resistor

Main Specifications of DP200/5：

• Rated Voltage: DC200KV, Negative polarity output;

• Rated current: 5mA

• Rated Capacity: 1000W

• Ripple factor: ≤1.0%

• Voltage measuring accuracy: ±1%, digital meter;

• Current measuring accuracy: ±1%, digital meter;

• Voltage Stability<1% precondition power input voltage variation <±10%;

• Working Cycle: 30 minutes/ 30 minutes off

• Power input: 220V,50 or 60Hz;

• Net Size and Weight

• 450*240*270mm, 10Kg for control panel, Φ 150*1000mm, 12 Kg for HV tank.

Accessories:

• 5mA microammeter, 1 piece

• 200KV discharge rod, 1 piece;

• Option for 1 MΩ current-limiting resistor, 1 piece;
