Introduction:

Transformer oil (also known as insulating oil) is widely used in oil-filled electrical power aparatus to insulate, stop arcing and corona discharge, and to dissipate the heat of the transformer.

The main hazards of insulating oil are oxidation, contamination, and excessive temperature.

Humidity and polar contaminants could be detected by oil tan delta, and Resistivity is particularly useful for used oil, such as contaminants of oxidation, metal compounds, aldehydes, ketones and alcohols;

High temperature Tan Delta tests are more sensitive to small changes that occur in oil characteristics. That is why Oil Tan Delta need to be tested at ambient and high temperatures. As per IEC 60247, it is ambient 25°C and 90 °C.

Description:

DF9010 is a laboratory instrument designed to measure oil tan delta, resistance and relative permittivity at the specific conditions as below:

Oil tan delta is tested with test voltage is up to 2000Vac and test temperature range: 20℃~ 110 ℃; Resistance and permittivity is tested with test voltage is up to 500Vdc.

Besides, 8 test standards are pre-installed to supply with standard test sequences, including IEC60247, ASTM D924, BS 5737, VDE 0380-2, JIS C2101,etc.

Each test provides a piece of information about the sampled oil under test. Compose them together you will get one complete and valuable oil condition picture.

Main Features:

• Microprocessor controlled, pre-installed 8 international test standards and 10 languages;

• High accuracy ±1% with resolution 1x10-6;

• Only 13kg, All-in-One

  Built-in oil cup, AC/DC power sources, inductive heater, Tan Delta bridge & reference capacitor, printer, all are integrated into one together;

• Oil Cup

  in compliance with IEC 60247;

  temperature measuring range of 10 to 110 ºC, with an accuracy of ± 1 ºC;

  easy to assemble and clean;

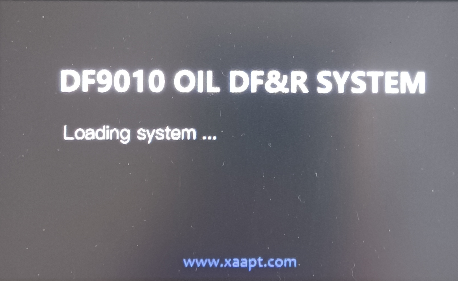

• Touching screen

• Fully automated, integrated with automated oil drain;

• High safety

  Overcurrent protection, the power is cut off within 10ms;

  The power will be cut off immediately once the instrument cover is opened

• User defined

  8 user defined test templates, operator could choose test standard, AC Voltage, DC voltage, temperature,test frequency. and save those parameters as one template;

  Alarm, Printing, and touch screen can be opened or closed;



Main Specifications:

• Tan δ range & accuracy: 100-10-6, ± (reading × 1% + 0.0001)

• Resistance range & accuracy: 2.5MΩ~100TΩ, ± (reading × 10%)

• Capacitance & accuracy: 50pf ~ 1800pf, ± (reading × 1%),resolution 0.001pf

• Relative permittivity:1-30

• Temperature measurement range & resolution: 0℃~ 120 ℃, 0.1℃;

• Temperature operated range & accuracy: 20℃~ 110 ℃, ±1℃

• Oil cup

• High & Low voltage gap:2 mm, 40ml of its volume;

• Empty cup: Capacitance 60pF±3 pF, the dielectric loss< 0.0001;

• Size:70mm(D)x120mm(H);

• Structure: Sealed and Plug

• Test Voltage:

  AC: 2000V/10mA, DC 500V/10mA

• Power supply:100V~260VAC，50Hz/60Hz,500W

• Computer interface: RS232,USB2.0

• Printer: Micro printer

• Working temperature range: - 10 ℃ ~ 40 ℃, relative humidity < 90%

• Storage temperature range: - 20 ℃ ~ 55 ℃

• Size: 338×260×302mm, weight: 13kg

8 Standards which DF9010 is supported as below/Including IEC, ASTM, VDE, BS,

• IEC 60247:2004 -Insulating liquids-Measurement of relative permittivity, dielectric dissipation factor(tan d) and d.c. resistivity;

• VDE 0380-2:2005_01 Insulating liquids-Measurement of relative permittivity, dielectric dissipation factor(tan d) and d.c. resistivity;

• BS 5737:1979 -Method of the measurement of relative permittivity dielectric dissipation factor and d.c. resistivity of insulating liquids;

• ASTM D924-15 Test Method for Dissipation Factor (or Power Factor) and Relative Permittivity(Dielectric Constant) of Electrical Insulating Liquids;

• ASTM D1169-11 Test Method for Specific Resistance (Resistivity) of Electrical insulating liquids;

• IEC 61620:1998 Insulating liquids-Determination of the dielectric dissipation factor by measurement of the conductance and capacitance-Test method

• JIS C2101: 2010 Testing methods of electrical insulating oils9Amendment 1)

• NBR 12133:1991 Liquids isolantes eletricos-Determinacao de factor de perdas dieletricas e da permissividade releativa(constant dieletrica)

10 languages available as blow:

English, Chinese (Traditional & Simplified) Spanish, Portuguese, German Russian, Japanese, Korean, French
