DP 801 Series high voltage DC Withstand test sets, provide DC high voltage source up to 60Kv for checking the quality of power cables, insulators, transformers, motors, switchgear, capacitors and arresters

Based on PWM technology and IGBT components, DP 801 Series is APT new-generation DC Hipot Tester higher reliability, small size and light weight, its control module and Hv tank can be put into one suitcase

Really portable design, suitable jobsite work. Such as acceptable and preventive test

DP 801 series have three models, DP801/2 with 2mA leakage current, DP801/3 with 3mA leakage current,

DP801/5 with 5mA leakage current

Detailed Information

Special HV Output Buttons and Indicators design:

Red and Green button and their indicators design on the control panel, ensure its HV output could be realized only HV output is connected and all protections in good condition

Red or Green indicator prompts its diffident status

Such as design, make sure the operator and test equipment in safety

Product Features:

□Based on PWM technology and IGBT components:

□Feedback circuit performed to reduce Ripple ratio;

□Stepless adjustment for voltage output, all range;

□Digital meters for Voltage and Current display;

□Air-insulated, Epoxy resin cylinder;

□Simple connections; simple operation;

□Yellow Button & Indicator: With 0.75UDC1mAfunction button, zinc oxide        arrester can be measured;

□Red Button & Indicator: HV connected or Disconnected, Safety design;

□Green Button & Indicator: the indicator is lighted, power supply is on and      HV output is disconnected; Safety design;

□Power Switch & Indicator: the switch could be used for emergency stop;

□Power socket with one fuse for over-current protection;

□Over-voltage setting by relay dial. Usually 1.1 times of test voltage, step 1       KV;

   Voltage output Up/Down adjusted by potentiometer with zero protection;

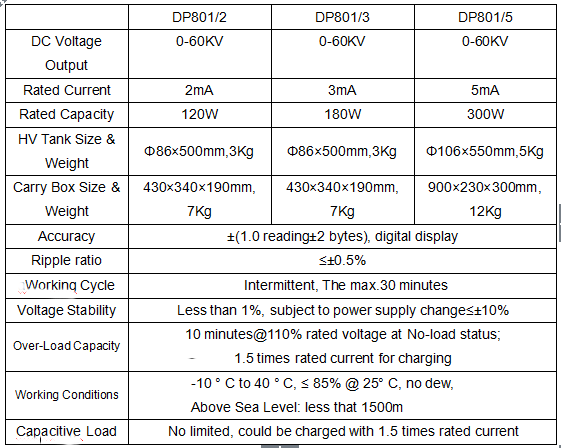

Technical specifications:

Ordering Information

Item         Art. No.

PI801 Series      1 set
